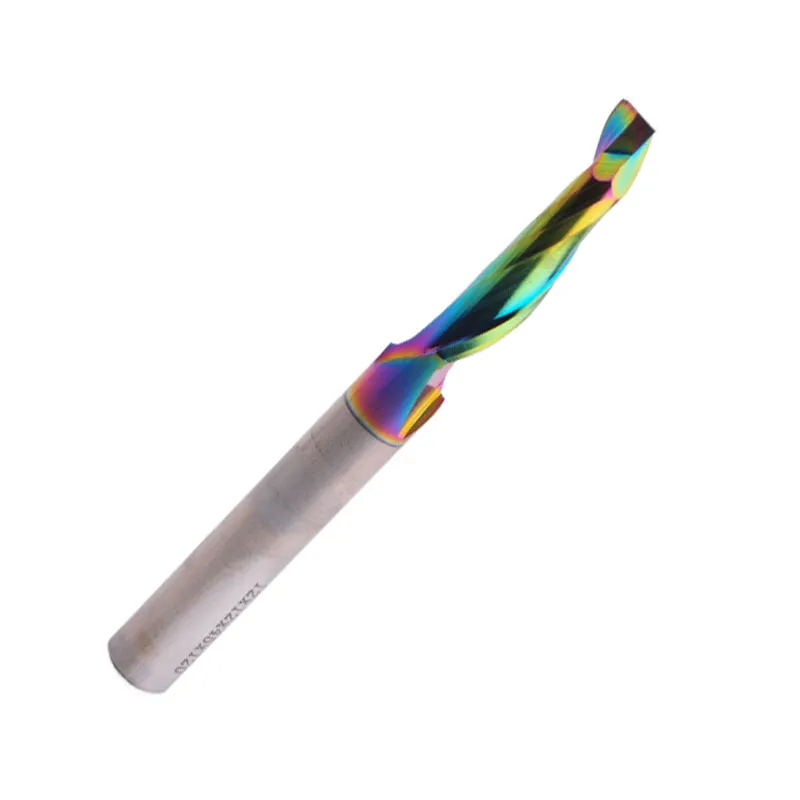

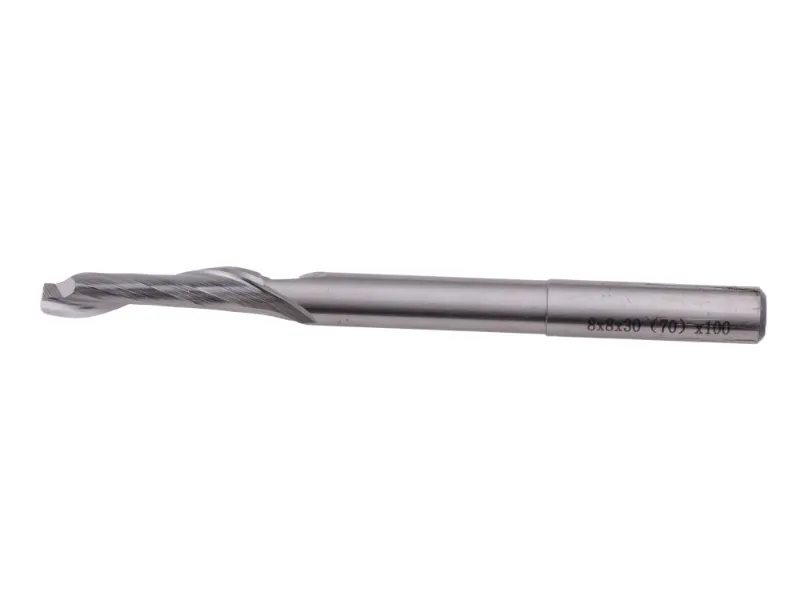

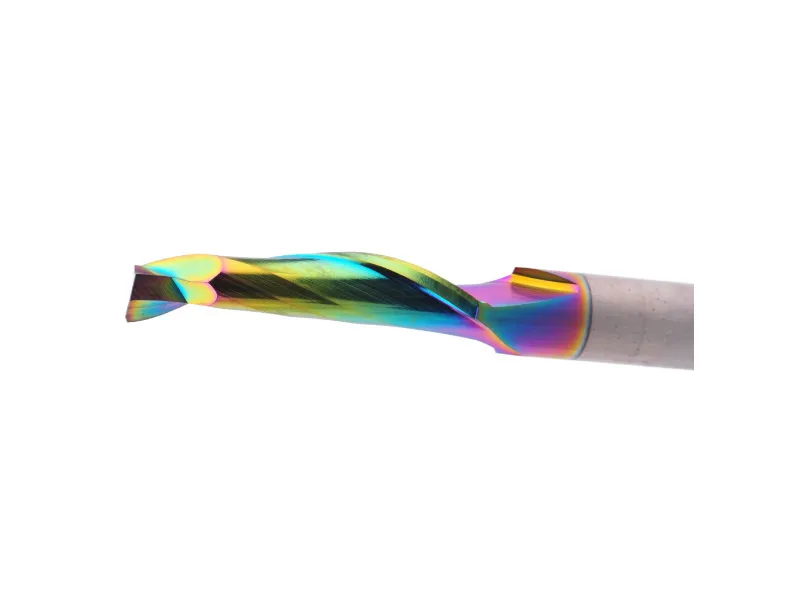

Square End Mill 1 Flute

Share:

A type of mill cutter used in industrial CNC milling machine

Also other types of end mill available: Corner Radius End Mill, Ball End Mill

Inquire Now Next Product

Square End Mill 1 Flute

Square End Mill 1 Flute

Square End Mill 1 Flute

Square End Mill 1 Flute

Cutting Diameter	Overall Length	Flute Length	Shank Diameter	Item Nr.:
mm	mm	mm	mm
3	50	12	3	65315003
4	50	12	4	65315004
5	50	17	5	65315005
6	50	17	6	65315006
8	80	32	8	65318008
10	80	32	10	65318010
12	80	32	12	65318012
3	38	8	3	65313803
4	38	8	4	65313804
5	38	12	5	65313805
6	38	12	6	65313806
8	60	25	8	65316008
10	60	25	10	65316010
12	60	25	12	65316012
3	60	17	3	65316003
4	60	17	4	65316004
5	60	22	5	65316005
6	70	22	6	65317006
8	100	45	8	65311008
10	100	45	10	653110010
12	100	45	12	653110012
