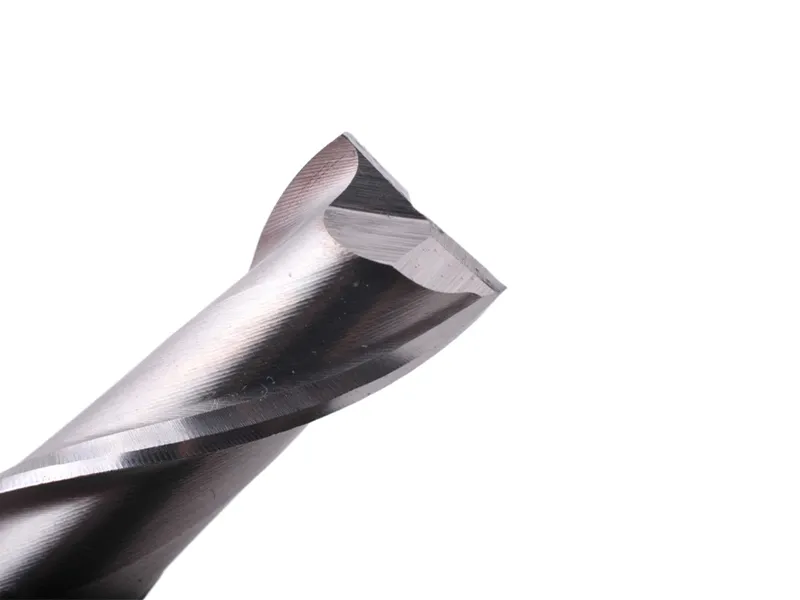

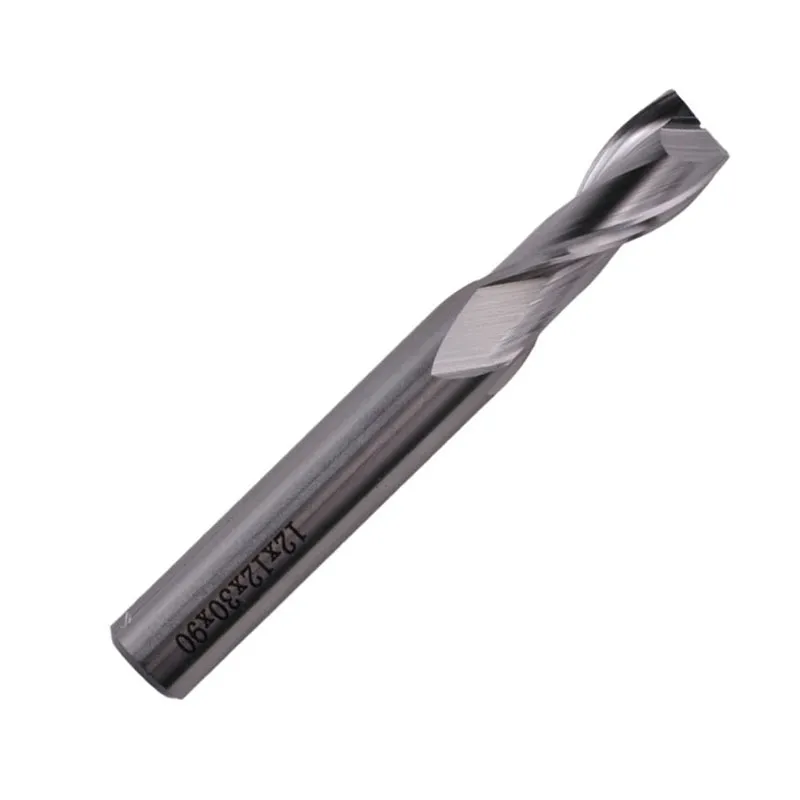

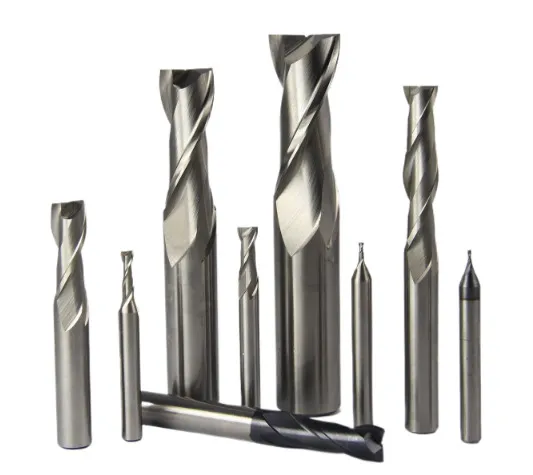

Square End Mill 2 Flute

Share:

A type of mill cutter used in industrial CNC milling machine

Also other types of end mill available: Corner Radius End Mill, Ball End Mill

Inquire Now Next Product

Square End Mill 2 Flute

Square End Mill 2 Flute

Square End Mill 2 Flutes, Metric Sizes

Square End Mill 2 Flutes, Fractional Sizes

Cutting Diameter	Overall Length	Flute Length	Shank Diameter	Item Nr.:
mm	mm	mm	mm
2	48	4	6	65324802
3	49	5	6	65324903
4	51	7	6	65325104
5	52	8	6	65325205
6	52	8	6	65325206
7	60	10	10	65326007
8	61	11	10	65326108
9	61	11	10	65326109
10	63	13	10	65326310
11	63	13	12	65326311
12	73	16	12	65327312
13	73	16	12	65327313
14	73	16	12	65327314
15	73	16	12	65327315
16	79	19	16	65327916
17	79	19	16	65327917
18	79	19	16	65327918
20	88	22	20	65328820
22	88	22	20	65328822
24	102	26	25	653210224
25	102	26	25	653210225
26	102	26	25	653210226
28	102	26	25	653210228
30	102	26	25	653210230
32	112	32	32	653211232
36	112	32	32	653211236
40	118	32	38	653211840

CuttingDiameter	Overall Length	Flute Length	Shank Diameter	Item Nr.:
mm	mm	mm	mm
1/8	2-5/16	3/8	3/8	65320108
5/32	2-5/16	7/16	3/8	65320532
3/16	2-5/16	7/16	3/8	65320316
1/4	2-5/16	1/2	3/8	65320104
5/16	2-5/16	9/16	3/8	65320516
3/8	2-5/16	9/16	3/8	65320308
7/16	2-5/16	9/16	3/8	65320716
1/2	3	1	1/2	65320102
9/16	3-1/8	1-1/8	1/2	65320916
5/8	3-7/16	1-5/16	5/8	65320508
11/16	3-7/16	1-5/16	3/4	65321116
7/8	3-3/4	1-1/2	3/4	65320708
1	4-1/8	1-5/8	1	65320001
