What Is the Purpose of End Milling?
The purpose of end milling is to precisely cut and shape materials to create specific features, profiles, and surface finishes. It removes material from a workpiece in a controlled way until the final geometry matches the required dimensions and design specifications.
End milling is also used to produce complex shapes, contours, and intricate geometries. In addition, it can create simple features such as slots, pockets, and holes in different sizes and depths, making it a highly versatile machining process.
Another important purpose of end milling is improving surface quality. It is often used as a finishing or post-processing method after casting or rough machining to achieve better accuracy and a smoother surface finish.
Because of its high precision and tight tolerance capability, end milling is widely used in both prototyping and production environments. It supports everything from small trial runs to medium and large-scale manufacturing while maintaining consistent accuracy and repeatability.
How Does the End Milling Process Work?
End milling is used to remove material from the surface of a workpiece using a rotating cutting tool called an end mill. The process begins with the workpiece securely clamped onto the machine table or fixture. The end mill is mounted in the spindle and rotated at high speed to ensure stable and precise cutting. As the machining starts, either the worktable or the tool moves according to a programmed toolpath, allowing the cutting edges to gradually engage and remove material from the workpiece surface.
During cutting, chips are continuously generated and removed from the cutting zone through coolant flow, chip evacuation systems, or the flute design of the tool. The CNC program or machinist controls key parameters such as spindle speed, feed rate, depth of cut, and toolpath to ensure accuracy and efficiency.
How End Mills Work
End mills are used on CNC machines where the tool is held in the spindle and rotated while the machine controls movement along a pre-set toolpath. The machining results depend on CNC inputs as well as the geometry, size, and coating of the end mill.
The Detailed Steps of End Milling
Part Design and Programming
A detailed CAD design is created first, defining all features and dimensions. It is then converted into a CNC program, considering the capability of the end mill and the required machining features.
Machine Setup
The end mill is installed in the spindle using a collet or tool holder. The workpiece is clamped on the machine table using fixtures or vises. The operator sets the work offset and adjusts parameters based on material and tool conditions.
Milling Process
Once the program runs, the spindle rotates the end mill and the cutting edges remove material through shearing. The end edges perform axial cutting, while side edges perform radial cutting. Helical flutes help with chip removal. The CNC controls movement along X, Y, and Z axes according to the toolpath.
What Industries Use End Milling?
Aerospace manufacturers use end milling to produce critical components like aircraft structural parts, engine components, and turbine blades. Its use in the automotive industry is widespread, for engine blocks, cylinder heads, transmission components, tooling, and other parts. The tool and die industry relies heavily on end milling when creating molds, dies, and tooling of all types. End milling is used on printed circuit boards (PCBs) and electronic enclosures and components. The medical industry employs end milling to manufacture surgical instruments, orthopedic implants, dental prosthetics, and medical devices. End milling is used for creating intricate designs in wooden furniture and toys. It can also shape and cut plastic and composite materials. End milling is used in the production of components for energy generation and distribution, including wind turbine parts, gas and steam turbine components, and power transmission equipment.
What Is the Importance of Choosing the Right Type of End Mill?
Selecting the correct end mill directly determines machining performance, efficiency, and final part quality. The right tool improves material removal rates, shortens cycle time, and enhances surface finish while maintaining stable cutting conditions. It also reduces tool wear, minimizes unexpected breakage, and lowers overall production cost by avoiding downtime and scrap. Different end mill geometries produce different cutting behaviors and surface qualities. Proper selection helps achieve tighter tolerances, higher precision, and more consistent results across various materials and applications. In short, the right end mill is essential for balancing productivity, tool life, and machining accuracy.
What Are the Different Types of End Mills?

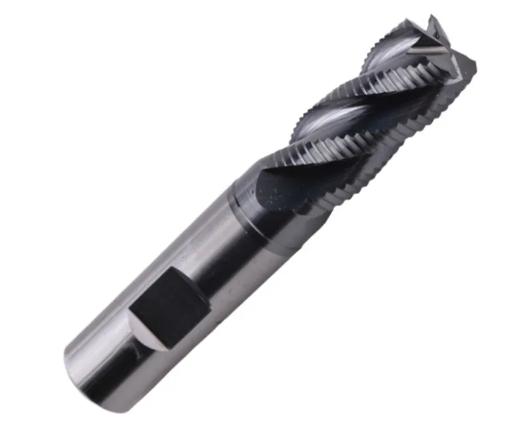

1. Roughing End Mills
Roughing end mills are designed for rapid, heavy material removal during the initial stage of machining. Their serrated cutting edges and robust geometry allow aggressive cutting while reducing cutting forces and vibration. Key features often include multiple flutes, coarse tooth design, high helix angles, corner radii, and reinforced shanks such as Weldon flats. These tools excel in breaking down large volumes of material quickly before finishing operations are performed with finer tools. Roughing end mills are ideal for high-efficiency stock removal in rough machining stages.
2. Ball End Mills
Ball end mills feature a hemispherical cutting tip, making them ideal for 3D contouring and complex surface machining. Their rounded geometry allows smooth tool engagement, especially on curved, concave, and sculpted surfaces. They are widely used for mold making, die work, and detailed surface profiling. Depending on requirements, they are available in single-flute, double-flute, and multi-flute configurations to optimize chip evacuation or surface finish. Ball end mills are essential for precision contouring and complex surface finishing applications.
3. Corner Rounding End Mills
Corner rounding end mills are specialized tools used to create rounded internal or external edges. The cutting tip is formed with a fixed radius, allowing consistent and precise filleting of sharp corners. They are commonly used to reduce stress concentration in machined parts and improve durability and safety. Various radius sizes are available to match different design requirements. Corner rounding end mills are primarily used in finishing operations where edge smoothing and stress reduction are required.
4. Square End Mills
Square end mills feature a flat cutting end with sharp 90° corners, making them one of the most versatile tool types in machining. They are suitable for slotting, profiling, plunging, and general-purpose milling. Available in two-flute, four-flute, and multi-flute designs, they can be used for both roughing and finishing depending on material and cutting conditions. Their sharp edges make them ideal for producing precise corners and flat-bottomed features. Square end mills are the standard choice for general machining applications requiring accuracy and versatility.
5. Dovetail End Mills
Dovetail end mills are designed specifically for cutting angled dovetail grooves and interlocking joints. The tool’s angled cutting head—commonly 45°, but available in other angles—ensures accurate matching of dovetail profiles. They are frequently used in fixture design, slide mechanisms, and woodworking applications where strong mechanical interlocking is required. Dovetail end mills are essential for producing precise dovetail joints and angled groove features.
6. Finishing End Mills
Finishing end mills are optimized for achieving high surface quality and tight dimensional accuracy. Their design typically features higher helix angles and refined cutting geometry, which helps reduce vibration, improve chip evacuation, and minimize cutting forces. These tools are used in the final machining stage after roughing operations, ensuring smooth surface finishes and precise final dimensions. Finishing end mills are critical in applications where surface integrity and tight tolerances are required.
7. V-Bit End Mills
V-bit end mills, also known as engraving cutters, feature a conical tip designed for detailed carving and precision engraving. They are widely used for marking text, logos, decorative patterns, and fine artistic details. Common tip angles include 60° and 90°, allowing different engraving depths and line widths depending on the application. V-bit end mills are ideal for high-precision engraving and decorative machining tasks.
How Do You Choose the Right End Mill for Your Material?
Before starting any milling operation, selecting the correct end mill for the workpiece material is essential. Key factors such as hardness, abrasiveness, thermal conductivity, and chip formation behavior all directly influence tool performance and machining results.
Soft materials are typically machined using standard HSS (high speed steel) tools such as square, ball, or flat end mills, which provide sufficient cutting performance at lower cost. Hard materials require carbide tools, diamond-like carbon (DLC), or aluminum titanium nitride (AlTiN) coated HSS end mills to improve wear resistance and maintain tool life under higher cutting loads. Abrasive materials such as composites require end mills with highly wear-resistant coatings to withstand continuous tool degradation. Heat-resistant materials demand specialized coatings that reduce friction and limit heat buildup during machining. Sticky materials such as certain plastics and aluminum alloys often require high helix or variable flute end mills to improve chip evacuation and prevent chip buildup. Brittle materials like ceramics require specialized low-speed end mills designed to reduce cutting stress and avoid cracking. Composite materials may require diamond-coated or polycrystalline diamond (PCD) tipped end mills to prevent delamination and ensure clean cutting edges. Wood machining typically uses standard end mills, while plastics benefit from sharp or single-flute end mills to reduce melting, burning, and chip re-welding.
| Material | Characteristics | End Mill Features | Grades/Types |
| Aluminum Alloys | Lightweight, easy to machine | High helix angles, polished flutes | 6061, 7075, 2024 |
| Steel & Stainless Steels | Strong, wear-resistant | High Speed Steel (HSS ) or carbide, TiCN coating | AISI 304, AISI 316, AISI 1018, AISI 1045 |
| Titanium Alloys | Strong, corrosion-resistant, hard to machine | Variable helix designs diamond-like carbon (DLC) coating | Grade 5 (Ti-6Al-4V), Grade 2 |
| Plastics | Lightweight, prone to melting | Sharp edges, single or double flutes | Acrylic, Polycarbonate, Nylon, Delrin, PE, PP |
| Composites | Abrasive, risk of delamination | Compression end mills | CFRP, GFRP, Kevlar, Epoxy, Thermoplastics |
Benefits of End Milling
An end mill cutter performs multiple operations such as cutting, plunging, flattening, profiling, and contouring. It delivers high machining precision and accuracy, down to ±0.05 mm in standard milling and up to ±0.002 mm in precision milling. It enables cutting along or across all four spindle axes, allowing the creation of a wide variety of complex shapes and surfaces. This accuracy reduces the need for additional finishing processes. The typical as-machined surface roughness ranges from 6.3 to 0.8 µm. Its multi-flute design and coating also support deeper cuts and improved cutting performance.
How Does the Number of Flutes Categorize End Mill Types?
The number of flutes on an end mill is a key factor in categorizing tool types, as it strongly affects cutting performance and chip evacuation. End mills with a single flute are designed for high-speed machining of soft materials such as plastics and aluminum, offering maximum chip clearance and suitability for shallow cuts. Two-flute end mills are general-purpose tools that provide good chip removal and are suitable for a wide range of materials. End mills with three or four flutes are used for more aggressive material removal and improved surface finish, making them suitable for both finishing operations and harder materials. End mills with five or more flutes are used in high-performance machining, delivering superior surface quality with reduced chip load per tooth.
How Does the End Mill Differ From the Drill Bit?
End mills and drill bits differ significantly in design and function. End mills feature fluted cutting edges along the sides and may have flat or rounded tips, allowing them to cut in multiple directions. Drill bits, in contrast, have pointed tips designed specifically for creating cylindrical holes and typically use two main cutting edges. End mills are used for milling operations such as removing material, creating flat surfaces, and machining complex geometries, while drill bits are intended only for drilling holes. End mills come in various geometries such as square, ball, and specialized profiles for different machining tasks, whereas drill bits generally have simpler twin-flute designs with tip angles such as 90° or 120°.
What Are the Different End Mill Operations?
End mills are versatile cutting tools used in a wide range of machining operations such as:
· Milling operations — removing material from a workpiece surface to create flat surfaces, contours, and complex shapes.
· Facing operations — cutting a flat surface at the end of a workpiece. Square or flat end mills are often used for this purpose.
· Profile milling — cutting complex shapes or profiles on a workpiece using ball end mills or chamfer end mills.
· Slotting operations — often require a starting hole to be drilled or milled first, which then serves as the entry point for slotting.
· Contouring — creating complex shapes and sculpted surfaces.
· Drilling (limited use) — some end mills can also be used to drill holes under suitable conditions.
· Engraving — V-bit end mills are used for text, logos, or decorative patterns.
· Roughing and finishing operations — end mills can be used for both material removal and final surface finishing.
· Helical interpolation — creating helical paths on a workpiece using end mills with high helix angles.
· Thread milling — specialized end mills are used to create internal or external threads.
Difference Between End Milling and Face Milling
End mills are used for end milling and side cutting. They have cutting edges on both the sides and tip, allowing cutting in multiple directions in a single operation. Face mills are equipped with multiple cutting inserts on a rotating cutter body, and these inserts engage the workpiece face-on only.
End milling involves cutting across the workpiece surface to create complex shapes, contours, and pockets. Face milling focuses on machining flat surfaces, squaring them, and achieving a smooth surface finish.
End milling is highly flexible and suitable for a wide range of machining tasks, while face milling is primarily used for squaring and finishing large flat surfaces.
| Aspect | End Milling | Face Milling |
| Cutting Tool | Small cutters, edges on the sides and end. | Large and flat cutters, edges on the face. |
| Tool Movement | Vertical or angled movement | Horizontal or flat movement |
| Chip Formation | Complex and discontinuous chips | Large and continuous chips |
| Speed | Lower cutting speeds | Higher cutting speeds |
| Surface Finish | Good for precision but rougher than face milling | Smoother finish on large workpieces, Ra ( 0.8 – 1.6 µm) |
| Applications | Detail work, pocketing, profiling | Surface finishing, flattening, large cuts |
| Best for | Small parts, deep slots, narrow spaces | Flatening and surface smoothing |
| Tool Life | Longer under proper use and maintenance | Faster wear due to higher cutting forces |
What Is the Difference Between End Milling and Plain Milling?
End mills have cutting edges on the sides and tip, allowing for versatile cutting in multiple directions. Plain milling cutters typically have multiple teeth arranged on the circumference and are designed primarily for cutting in the axial direction.
End milling involves cutting across the workpiece surface to create complex shapes, contours, and pockets. Plain milling is mainly used for producing flat, horizontal surfaces, such as facing the top of a workpiece.
End mill cutters are suitable for a variety of operations, including profiling, slotting, and contouring. Plain milling cutters are typically used to create flat surfaces, square workpieces, and reduce material thickness.
FAQ
What Are the Different Types of End Mills?
Based on geometry and application, common types include flat end mills, ball nose end mills, roughing end mills, finishing end mills, corner radius end mills, and tapered end mills.
How Do I Choose the Right End Mill for My Project?
Choosing the right CNC end mill depends on material type, cutting purpose (roughing or finishing), tool geometry (flutes and shape), machine capability, and required surface finish.
How Does End Milling Differ from Drilling?
Drilling is an axial cutting process used to create cylindrical holes, while end milling allows both axial and radial cutting to produce slots, grooves, pockets, and complex contours.
Why Is It Called an End Mill?
It is called an end mill because its cutting edges are located on both the end and sides of the tool, enabling multi-directional material removal.
How Does a Milling Cutter Differ from a Ball End Mill?
A milling cutter is a general term covering various cutting tools such as end mills, face mills, and slab mills. A ball end mill is a specific type with a hemispherical tip used for 3D contouring and complex surface machining.
How to Determine the Feed Rate of a Milling Cutter?
Feed rate can be calculated using the formula:
Feed = Spindle Speed (N) × Chip Load per Tooth (Z) × Number of Flutes.
