Spot Drill vs. Center Drill: What is the Difference?

When setting up drilling operations in Mastercam, you may come across two similar tool options in the tool library: spot drills and center drills. Although the names are sometimes used interchangeably, they are designed for different machining purposes. Selecting the incorrect tool can result in premature tool wear, reduced hole accuracy, or even machining errors. Understanding their distinct roles helps ensure better tool selection and more reliable results.

Understanding the Geometry

When placed side by side, their design differences clearly reflect their functions:

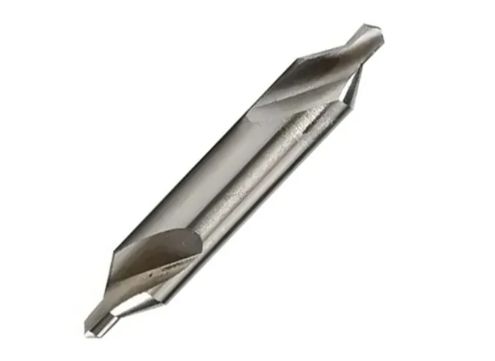

A center drill is primarily used to create a precise locating divot, typically for a lathe center to engage. Its geometry is optimized for rigidity and centering support rather than deep hole preparation.

A spot drill, on the other hand, is designed to produce an accurate starting point for a twist drill. It helps prevent drill wandering, improves positional accuracy, and ensures the drill enters the material cleanly at the intended location.

What Is a Center Drill Used For?

Center drills are not designed for spotting or starting standard drilled holes. Their main function is to create a precise conical seat that supports a lathe center, most commonly in turning operations, and in some cases in milling setups that require rotary fixtures or secondary support.

A center drill typically features a two-part geometry that serves a very specific purpose. The small tip diameter is used to create an initial locating point and can also help retain cutting fluid when working with dead centers. The larger conical section is machined to match standard center angles, providing stable, accurate seating and alignment for the workpiece.

However, using a center drill for hole spotting is a common mistake that can lead to machining issues. Twist drills usually have point angles of 118° or 135°, while center drills are typically ground to a 60° angle. Because of this mismatch, the cutting edges of the twist drill engage unevenly at the start of the cut. This can cause edge chipping, excessive cutting torque, poor hole accuracy, and in severe cases, drill breakage.

Why Use a Spot Drill for Drilling Operations?

Spot drills are designed specifically for this purpose. Their included angle is larger than the drill tip angle, which ensures the drill engages accurately at the center.

• Prevents drill walking.

• Reduces stress on cutting edges.

• Improves hole accuracy and extends tool life.

Pro Tip: Select a spot drill with an angle slightly larger than your drill’s tip angle for best performance.

Other Applications for Spot Drills

Spot drills can also be used to:

• Break the edge of a hole.

• Perform chamfering when the angle is not critical.

If the drawing specifies a precise chamfer angle, the recommended process is to spot slightly undersize, drill the hole, and then finish with a countersink tool.
