What Is a Tapered Drill Bit?
When working with woodworking, metal fabrication, or general construction projects, selecting the right drill bit is essential for precision and efficiency. Among the many types available, the tapered drill bit is a specialized tool that stands out for its unique shape and performance advantages.
Unlike standard straight drill bits, tapered drill bits feature a gradually changing diameter along their cutting length. This design improves drilling stability, accuracy, and chip removal, making them particularly useful in applications where precision pilot holes or controlled material removal are required.
In this article, we will explain what a tapered drill bit is, how it works, its structure, materials, applications, and how it differs from similar drilling tools.
Understanding What a Tapered Drill Bit Is
A tapered drill bit is a cutting tool designed with a gradually decreasing or increasing diameter from one end to the other. Instead of maintaining a uniform thickness like standard twist drill bits, its body forms a slight cone shape.
According to machining and tooling definitions, a taper refers to a gradual reduction in diameter along a length, typically forming a conical geometry.
In practical terms, this means a tapered drill bit can:
· Start with a smaller cutting diameter at the tip
· Gradually increase (or decrease) in size along its body
· Produce a slightly conical hole instead of a perfectly cylindrical one
This geometry improves alignment and helps the bit naturally guide itself into the material during drilling.
Structure and Design of Tapered Drill Bits
Although tapered drill bits vary by application, most share several key structural components:
1. Shank
The shank is the part held by the drill chuck or machine spindle. In tapered designs, the shank itself may also be tapered, especially in industrial versions designed for Morse taper systems.
2. Fluted Cutting Section
Like standard twist drills, tapered bits include helical flutes. These grooves serve two main purposes:
3. Tapered Body
The defining feature is the gradual change in diameter. Some designs taper only the shank, while others taper the entire working length of the bit.
This structure reduces resistance during drilling and improves chip evacuation, especially in deeper holes.
Materials Used in Tapered Drill Bits
Tapered drill bits are manufactured from durable materials designed to withstand heat, friction, and mechanical stress. Common materials include:
· Carbon steel – economical and suitable for soft materials
· High-Speed Steel (HSS) – widely used for general-purpose drilling
· Cobalt steel – stronger and more heat-resistant, ideal for harder metals
· Titanium-coated steel – enhances wear resistance and extends tool life
In industrial-grade versions, carbide-tipped materials may also be used for high-hardness applications.
How a Tapered Drill Bit Works
The working principle of a tapered drill bit is based on gradual engagement with the material.
When drilling begins:
1. The smaller tip enters the material first
2. The bit gradually engages more surface area as it penetrates deeper
3. The flutes continuously remove chips from the hole
4. The taper helps maintain alignment and reduces wandering
This self-centering effect is especially valuable when starting holes in wood or soft metals, where standard bits may drift off-center.
Additionally, the tapered geometry allows:
What Are Tapered Drill Bits Used For?
Tapered drill bits are widely used across woodworking, construction, and industrial manufacturing. Their main applications include:
1. Pilot Hole Drilling in Wood
One of the most common uses is creating pilot holes for screws. The tapered design helps match the screw’s profile, allowing for:
2. Precision Fastener Installation
In assembly work, tapered holes help fasteners seat more securely. This improves alignment and mechanical stability.
3. Metal Fabrication
In machining and metalworking, tapered drill bits are used for:
· Preparing holes for reaming
· Creating stepped or conical holes
· Improving hole accuracy before finishing operations
4. Plastic and Composite Materials
Because plastics can crack under stress, tapered drill bits reduce sudden pressure buildup and minimize damage.
5. Specialized Industrial Machines
Some tapered drill bits are designed for use with taper shank drill systems, including machine tools using Morse taper fittings. These systems allow:
Advantages of Tapered Drill Bits
Tapered drill bits offer several engineering benefits compared to straight drill bits:
1. Better Accuracy
The self-centering effect reduces bit wandering at the start of drilling.
2. Improved Chip Removal
The tapered structure creates more space for chips to escape, preventing clogging.
3. Reduced Material Damage
Less stress concentration means lower risk of cracking wood or brittle materials.
4. Stronger Fastening Performance
In woodworking, tapered pilot holes improve screw holding strength and reduce splitting.
5. Enhanced Tool Stability
Gradual engagement reduces vibration and improves control during drilling.
Tapered Drill Bits vs Standard Drill Bits
Many people confuse tapered drill bits with standard twist drill bits or “taper-length” drill bits. However, they are not the same.
Standard Drill Bits
· Constant diameter along the cutting section
· Produce straight cylindrical holes
· Suitable for general drilling tasks
Tapered Drill Bits
· Diameter changes gradually along the body
· Produce slightly conical holes
· Offer better guidance and alignment
It is also important to distinguish tapered drill bits from “taper-length drill bits,” which refer to the length of the tool, not its shape.
Tapered bits are defined by geometry, while taper-length bits are defined by dimensions.
Types of Tapered Drill Bits
There are several variations of tapered drill bits depending on usage:

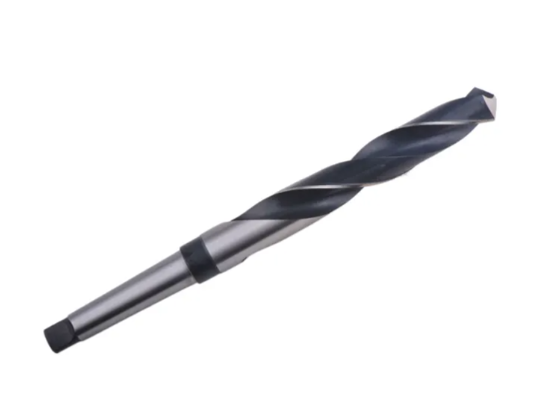

1. Tapered Shank Drill Bits
Used in machine tools with Morse taper sockets for secure mounting and high torque applications.
2. Woodworking Tapered Bits
Designed specifically for pilot holes in wood, especially for screws and dowels.
3. Industrial Taper Reamers
Used for precision finishing of holes to achieve exact taper specifications.
4. Carbide Taper Bits
Used in heavy-duty drilling applications, especially in hard materials like steel or stone.
Common Applications Across Industries
Tapered drill bits are widely used in:
· Furniture manufacturing
· Cabinet making
· Structural woodworking
· Automotive assembly
· Aerospace machining
· Metal fabrication workshops
· Construction and renovation work
Their versatility makes them a valuable tool in both professional and DIY environments.
Conclusion
A tapered drill bit is a specialized cutting tool designed with a gradually changing diameter that improves drilling precision, stability, and efficiency. Unlike standard straight drill bits, it creates a controlled conical drilling action that enhances alignment and reduces material damage.
From woodworking pilot holes to industrial machining applications, tapered drill bits are essential tools where accuracy and controlled cutting performance matter most.
Understanding their structure, uses, and advantages can help you choose the right tool for your project and achieve cleaner, stronger, and more precise drilling results.
