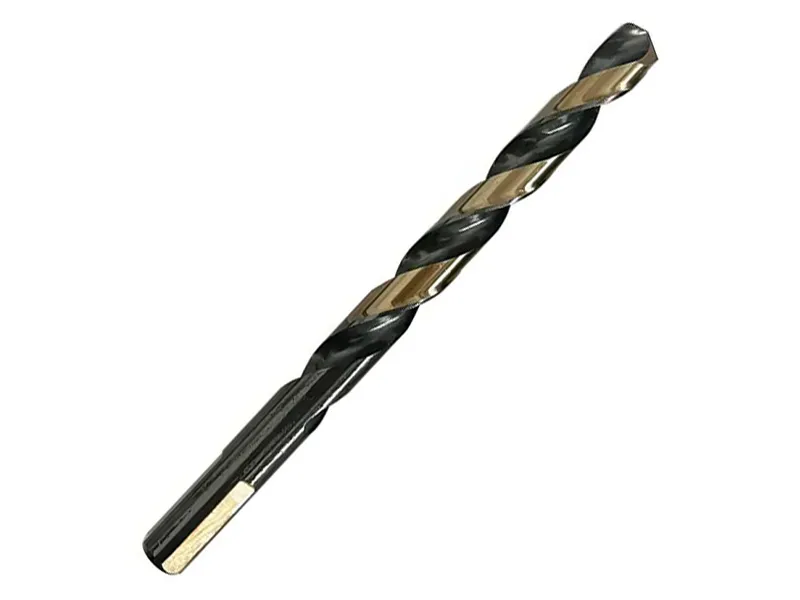

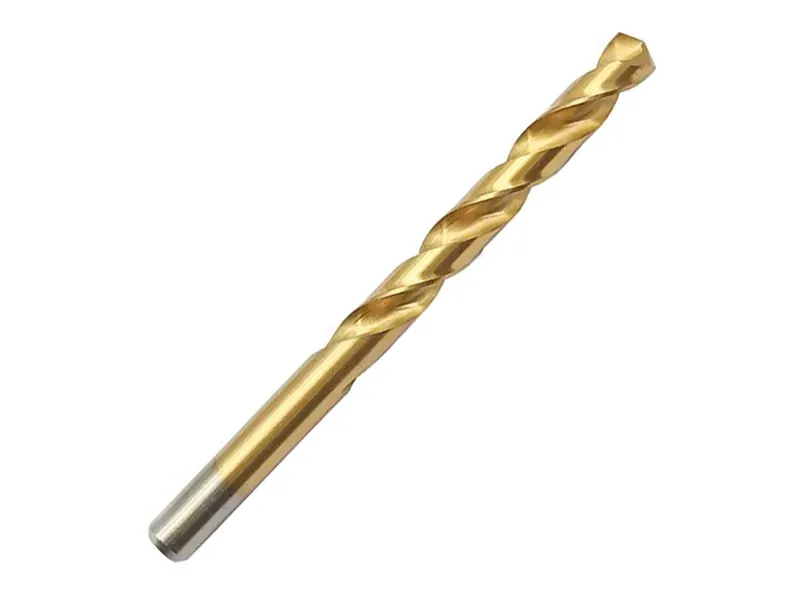

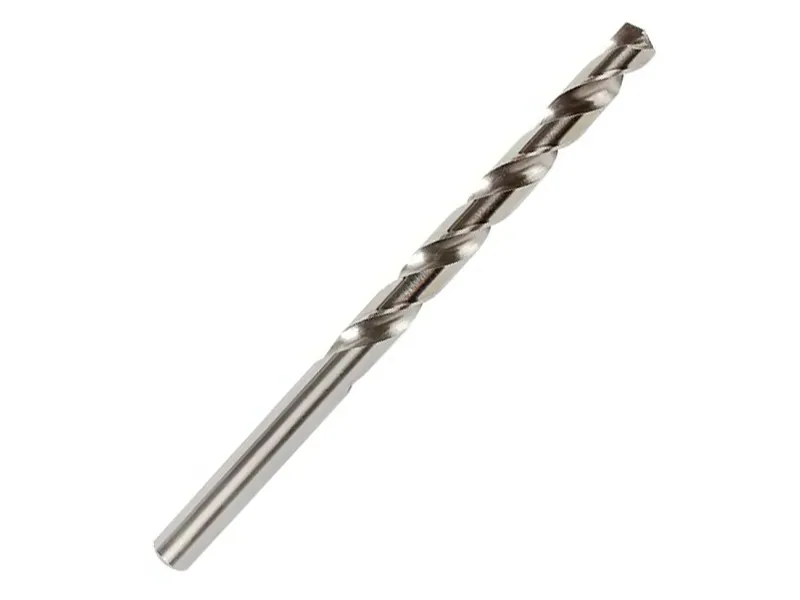

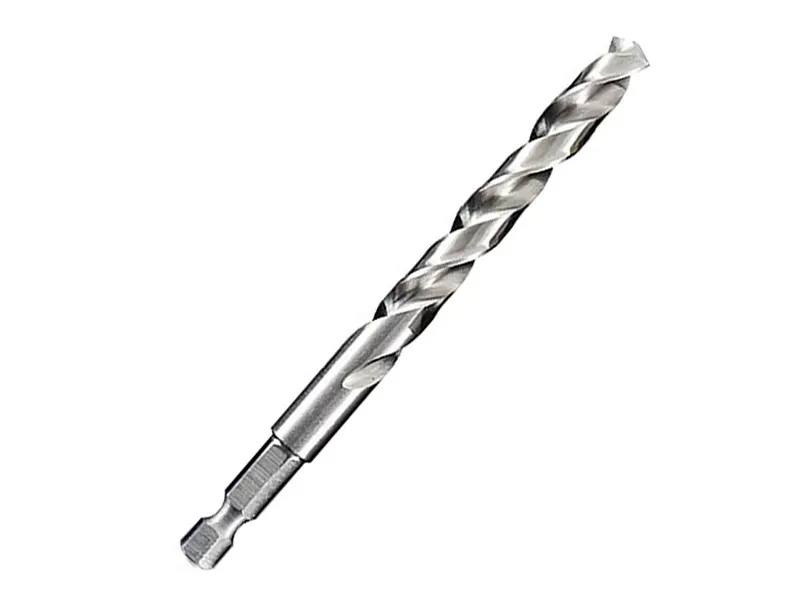

HSS-G Twist Drill

HSS-G drill is the most common general-purpose drill. Resists heat and is durable. Normally used to drill Soft Metals (Aluminum, Brass), Mild Steel, Plastic, Wood etc.

HSS-G DRILL DIN338

DIN340

Inquire Now Next Product

HSS-G Drill DIN338 135 split point

HSS-G Drill DIN340 135 split point

Diameter	Overall Length	Flute Length	Item Nr.:
mm	mm	mm
1	34	12	61100001
1.5	40	18	61100015
2	49	24	61100002
2.5	57	30	61100025
3	61	33	61100003
3.2	65	36	61100032
3.5	70	39	61100035
4	75	43	61100004
4.5	80	47	61100045
4.8	86	52	61100048
5	86	52	61100005
5.5	93	57	61100055
6	93	57	61100006
6.5	101	63	61100065
7	109	69	61100007
7.5	109	69	61100075
8	117	75	61100008
8.5	117	75	61100085
9	125	81	61100009
9.5	125	81	61100095
10	133	87	61100010
10.5	133	87	61100105
11	142	94	61100011
11.5	142	94	61100115
12	151	101	61100012
12.5	151	101	61100125
13	151	101	61100013
14	160	108	61100014
15	169	114	61109015
16	178	120	61109016
17	184	125	61109017
18	191	130	61109018
19	198	135	61109019
20	205	140	61109020

Diameter	Overall Length	Flute Length	Item #
mm	mm	mm
1	56	33	61400001
1.5	70	45	61400015
2	85	56	61400002
2.5	95	62	61400025
3	100	66	61400003
3.2	106	69	61400032
3.5	112	73	61400035
4	119	78	61400004
4.5	126	82	61400045
4.8	132	87	61400048
5	132	87	61400005
5.5	139	91	61400055
6	139	91	61400006
6.5	148	97	61400065
7	156	102	61400007
7.5	156	102	61400075
8	165	109	61400008
8.5	165	109	61400085
9	175	115	61400009
9.5	175	115	61400095
10	184	121	61400010
10.5	184	121	61400105
11	195	128	61400011
11.5	195	128	61400115
12	205	134	61400012
12.5	205	134	61400125
13	205	134	61400013
14	214	140	61400014
15	220	144	61409015
16	227	149	61409016
17	235	154	61409017
18	241	158	61409018
19	247	162	61409019
20	254	166	61409020
