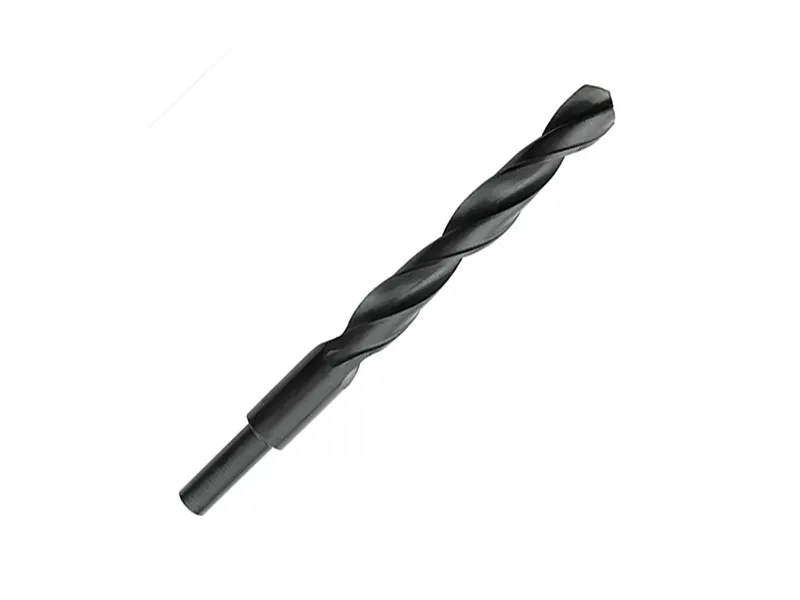

HSS-R Twist Drill

The HSS-R drill bits is the most common and versatile tool for drilling circular holes. It's a fundamental cutting tool found in almost every workshop, from a professional machine shop to a household toolbox

Roll forged, 118 split point

Finish: Black oxide nitride, bright polished, titanium coated

Inquire Now Next Product

HSS-R Twist Drill DIN 338

HSS-R Roll Forged Twist Drill DIN340

Diameter	Overall Length	Flute Length	Item Nr.:
mm	mm	mm
1	34	12	60100001
1.5	40	18	60100015
2	49	24	60100002
2.5	57	30	60100025
3	61	33	60100003
3.2	65	36	60100032
3.5	70	39	60100035
4	75	43	60100004
4.5	80	47	60100045
4.8	86	52	60100048
5	86	52	60100005
5.5	93	57	60100055
6	93	57	60100006
6.5	101	63	60100065
7	109	69	60100007
7.5	109	69	60100075
8	117	75	60100008
8.5	117	75	60100085
9	125	81	60100009
9.5	125	81	60100095
10	133	87	60100010
10.5	133	87	60100105
11	142	94	60100011
11.5	142	94	60100115
12	151	101	60100012
12.5	151	101	60100125
13	151	101	60100013
14	160	108	60100014
15	169	114	60109015
16	178	120	60109016
17	184	125	60109017
18	191	130	60109018
19	198	135	60109019
20	205	140	60109020

Diameter	Overall Length	Flute Length	Item #
mm	mm	mm
1	56	33	60500001
1.5	70	45	60500015
2	85	56	60500002
2.5	95	62	60500025
3	100	66	60500003
3.2	106	69	60500032
3.5	112	73	60500035
4	119	78	60500004
4.5	126	82	60500045
4.8	132	87	60500048
5	132	87	60500005
5.5	139	91	60500055
6	139	91	60500006
6.5	148	97	60500065
7	156	102	60500007
7.5	156	102	60500075
8	165	109	60500008
8.5	165	109	60500085
9	175	115	60500009
9.5	175	115	60500095
10	184	121	60500010
10.5	184	121	60500105
11	195	128	60500011
11.5	195	128	60500115
12	205	134	60500012
12.5	205	134	60500125
13	205	134	60500013
14	214	140	60500014
15	220	144	60509015
16	227	149	60509016
17	235	154	60509017
18	241	158	60509018
19	247	162	60509019
20	254	166	60509020
